1. Introduction​

1.1 Purpose​

This document outlines the technical requirements and architectural structure for the BookADoc platform. The goal of this document is to provide engineers with a deep understanding of the entire system, technical requirements and architectural design. This also enable collaboration on this document whenever necessary.

1.2 Scope​

This document will be limited to just technical requirements and architectural structure of the BookADoc platform.

2. System Overview​

The BookADoc platform is a cloud-based, Multi-Service SaaS application designed to streamline the process of scheduling medical appointments for patient as well as make managing those appointment a breeze for clinic admin and providers alike.

3. Technical Requirements​

3.1 Front-end​

3.1.1 Technology Stack​
  • Language: TypeScript
  • Framework: React
  • UI Library: Chakra UI
3.1.2 Front-end Services & Repositories​

3.2 Back-end API & Worker​

3.2.1 Technology Stack​
  • Language: JavaScript
  • Framework: NodeJs & Express

NB: Plans are ongoing to migrate to NestJS

3.2.2 Repositories​

3.3 Workflow​

3.3.1 Technology Stack​
3.3.1.1 Workflow Application​
  • Language: PHP
  • Framework: Laravel
3.3.1.2 Document Generation Tool​
  • Language: JavaScript
  • Framework: NodeJs
  • Library: Puppeteer
3.3.2 Repositories​
  • Workflow
  • URL2PDF: This is the document generation tool called by the workflow app over terminal to generate eSignature document

3.3 Database & Other Storage​

  • Database: MySQL serves as the main data store for the application, handling the persistence of all application data. It stores all patient, and provider information, appointment data, audit trials, configurations, etc.
  • File Storage: AzureBlob storage serve is the main filesystem for the entire platform for file storage and retrieval.
  • Caching & Job Management: Redis is used for caching and Job queue management, reducing the load on the database and improving performance.
  • Vector Index: Pinecone

4. Architectural System Design​

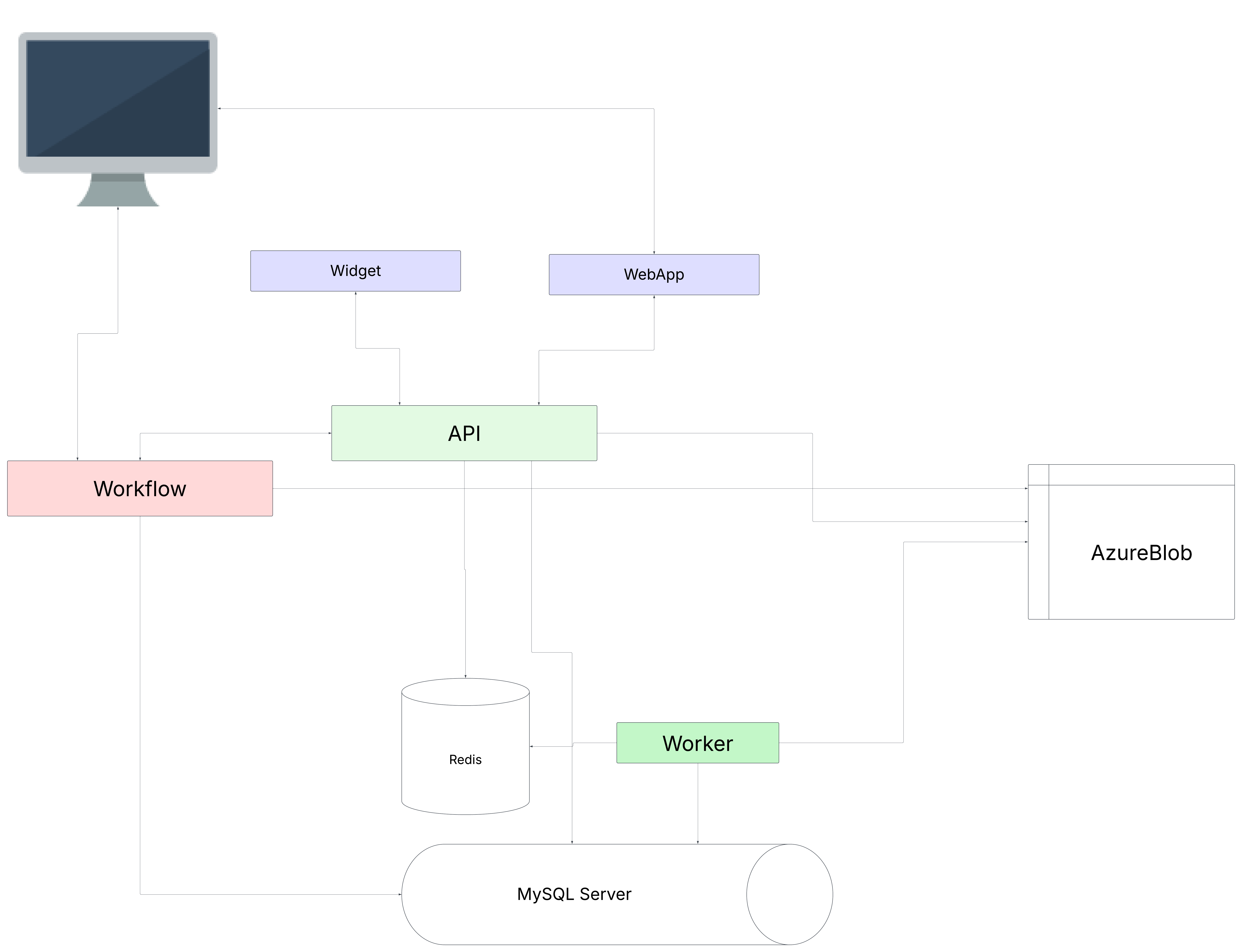

Below is a diagram of the communication between the different services:

5. Conclusion​

This architecture ensures scalability, performance, and clear separation of concerns. The system allows each component to scale independently while maintaining efficient communication between services.
